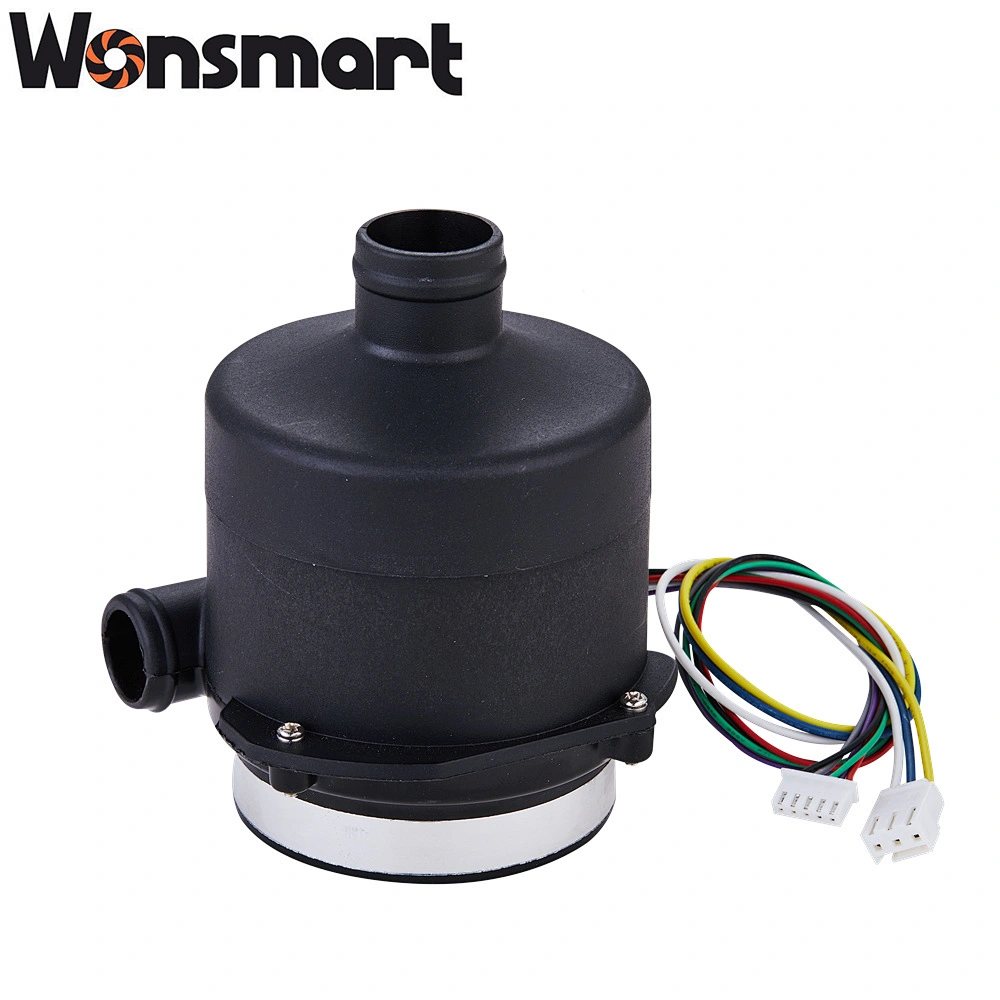

mini turbo blower for 5kw fuel cell
WS9290B-24-220-X300
Compact blower designed to support 5KW fuel cells, boosting efficiency and reducing downtime.
Quantity
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| Mini turbo blower for 5kw fuel cell | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 Vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 490 grams |
| Applicable Industries: Manufacturing Plant | Unit size: D92mm *H90mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Place of Origin:Zhejiang, China | Static pressure: 14kPa |
 |  |
WS9290B-24-220-X300 blower can reach maximum55m3/h airflow at 0 kpa pressure and maximum14kpa static pressure.It has maximum output air power when this blower run at 7kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 7kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:
(1)WS9290B-24-220-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000hours at 20degree C environmental temperature.
(2)Mini turbo blower for 5kw fuel cell needs no maintence;
(3)Mini turbo blower for 5kw fuel cell drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.
(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
This mini turbo blower is the ideal solution for 5KW fuel cells that require a steady supply of air. Turbo blower compact size and lightweight design make it perfect for integrating into existing systems. With its high efficiency and low noise levels, turbo blower delivers constant airflow and reduces downtime, allowing for better performance and longer lifespan. Whether for use in mobile or stationary applications, this turbo blower ensures uninterrupted power supply and improves overall productivity.
