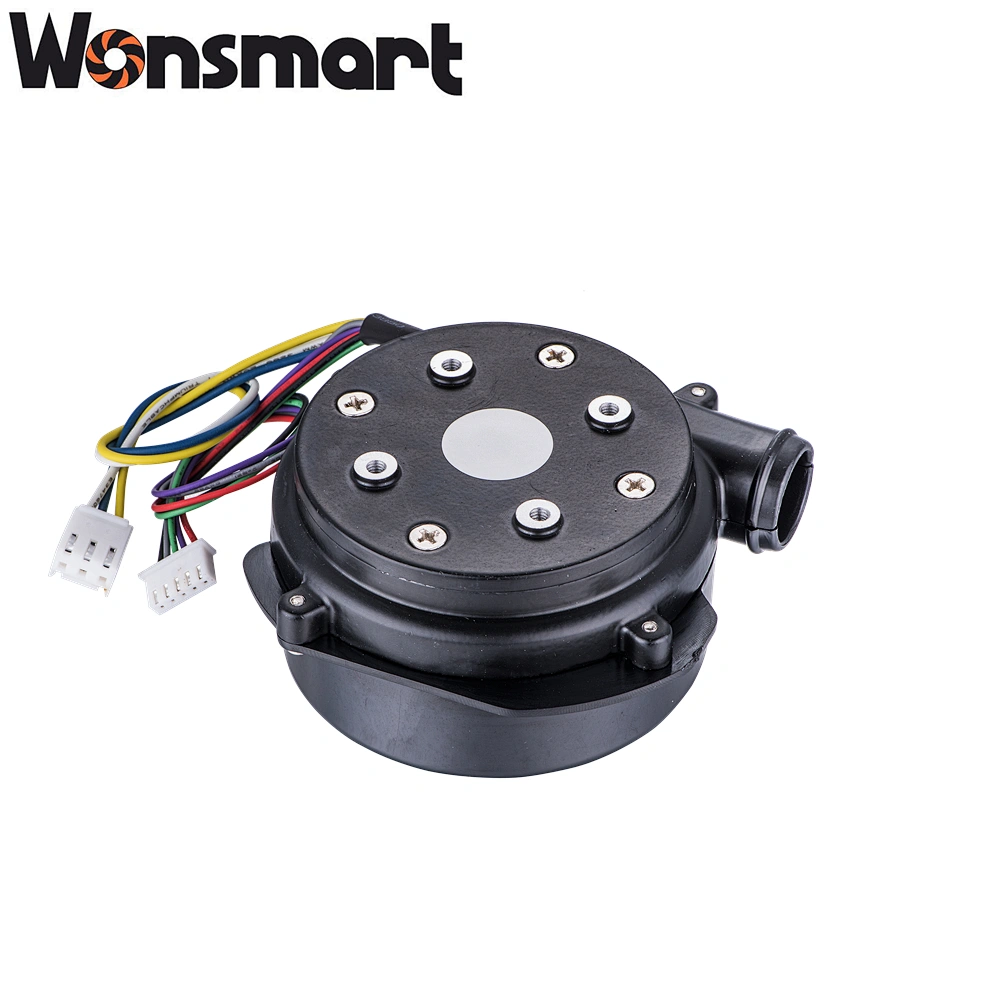

Mini Turbo Blower for 3KW Fuel Cell
WS9250-24-240-X200
The compact and efficient mini turbo blower is designed to enhance the performance of 3KW fuel cell systems.
Quantity
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| High pressure with dc brushless motor | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 420 grams |
| Type: Centrifugal Fan | Housing material:PC |
| Applicable Industries: Manufacturing Plant | Unit size: D92mm *H50mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 8.5kPa |
 |  |
WS9250-24-240-X200 blower can reach maximum 57m³/h airflow at 0 kpa pressure and maximum 8.5kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 8.5kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS9250-24-240-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This turbo blower needs no maintence
(3)This turbo blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
Boost the efficiency and performance of your 3KW fuel cell system with our mini turbo blower. Made from high-quality materials, this blower boasts a compact and durable design that's perfect for small-scale fuel cell applications. With its high-speed operation and low power consumption, our turbo blower can help you achieve maximum air flow with minimal energy expenditure. Whether you're looking to improve the efficiency of your fuel cell-powered vehicle or maximize the output of your fuel cell generator, our mini turbo blower is the perfect solution. Usage scenarios: - Automotive industry - Portable power sources - Backup power systems - Telecom equipment - Disaster relief equipment Advantages: - High-speed operation - Compact and durable design - Low noise and power consumption - Enhances fuel cell performance - Easy to install and maintain
