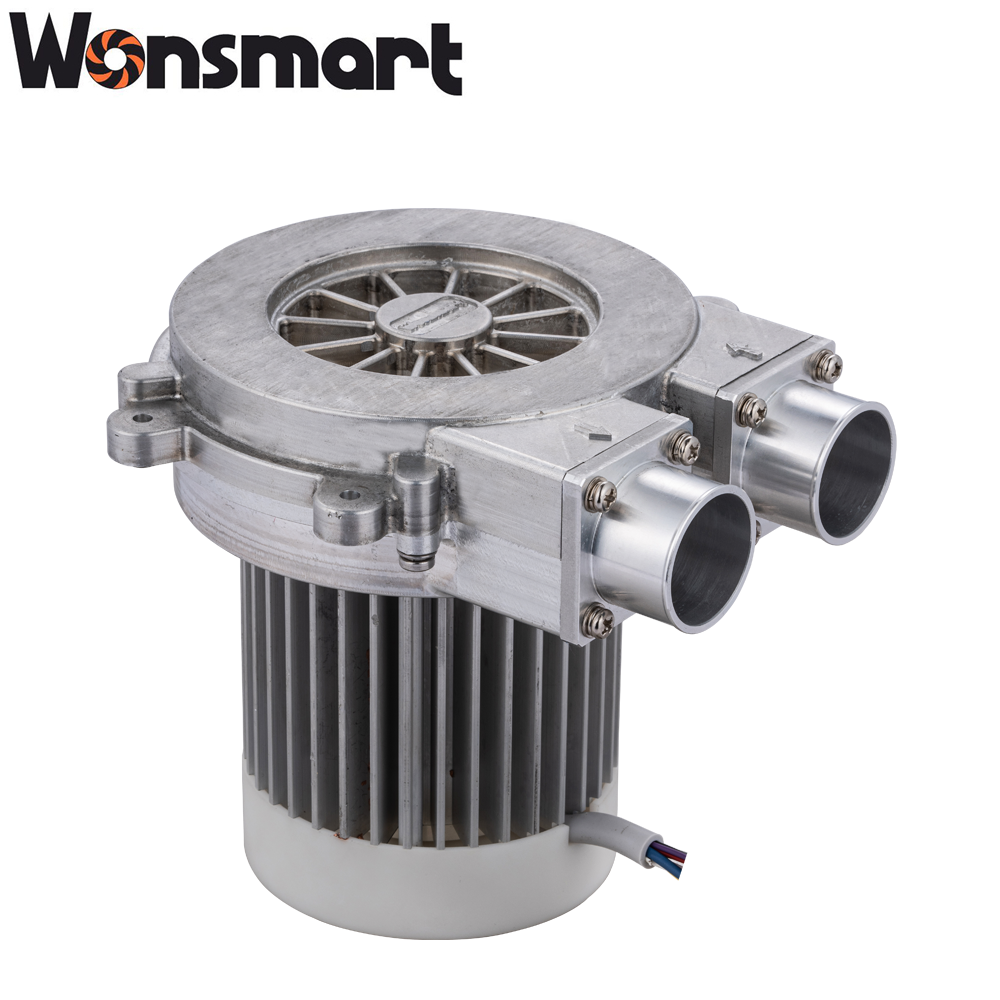

High speed industrial mini air blower for 8kw fuel cell
WS145120-24-150-X300
This mini air blower is designed for industrial use and can be used with an 8KW fuel cell. It provides high speed airflow for efficient and effective operation.
Quantity
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| High speed industrial mini air blower for 8kw fuel cell | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage:24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 1.5 kgs |
| Applicable Industries: Manufacturing Plant | Unit size: D145mm *H120mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 6kPa |
 |  |

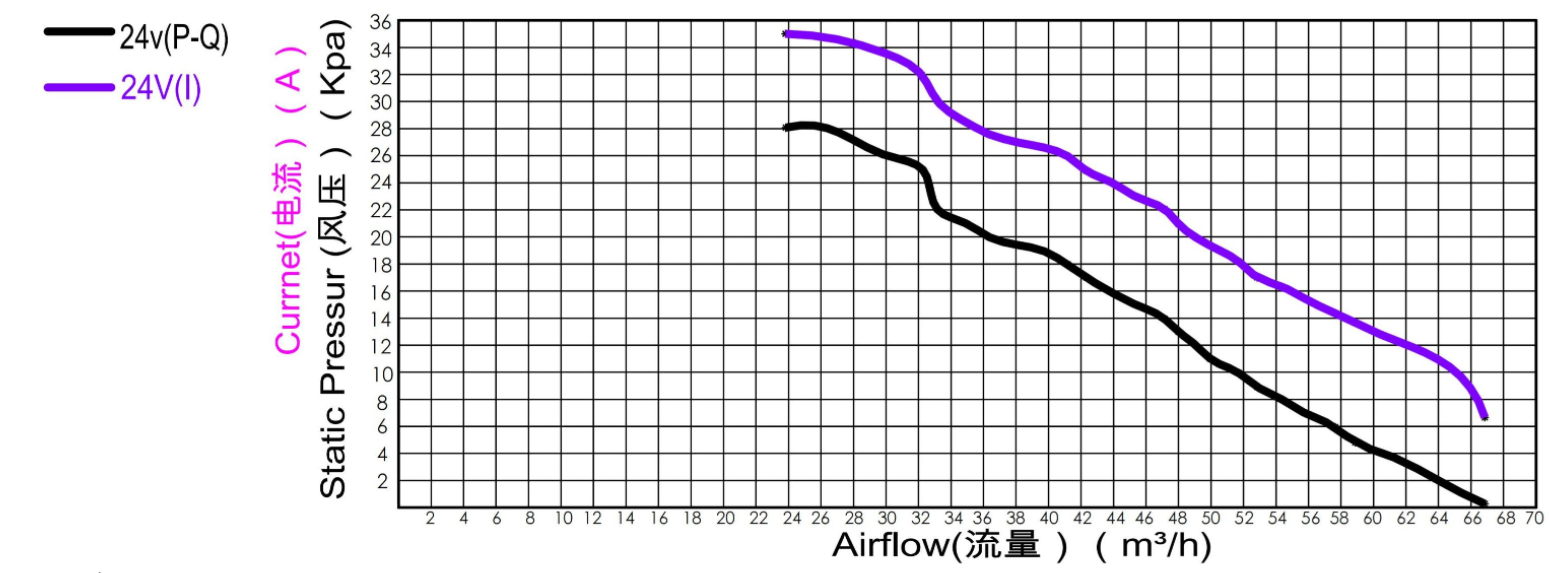

WS145120-24-150-X300 small size air blower can reach maximum 67m³/h airflow at 0 kpa pressure and maximum 28kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. small size air blower has maximum efficiency when this blower run at 28kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS145120-24-150-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This fuel cell turbine machine needs no maintence
(3)This 48vdc turbine blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc. small size air blower can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
The High Speed Industrial Mini Air Blower for 8KW Fuel Cell is a compact yet powerful tool designed for industrial use. Its high speed airflow ensures efficient and effective operation of an 8KW fuel cell. With a maximum airflow of 350 cubic meters per hour and a maximum pressure of 2,000 Pascals, this mini air blower is perfect for a variety of industrial applications. The blower is lightweight and easy to maneuver, making it ideal for tight spaces and difficult-to-reach areas. It features a high-quality motor that provides reliable and consistent performance, as well as a durable housing that can withstand the toughest industrial environments. The mini air blower comes with a range of accessories, including nozzles and hoses, to ensure maximum versatility and usability. Whether you need to clean machinery, dry a surface, or remove dust and debris, the High Speed Industrial Mini Air Blower for 8KW Fuel Cell is the ideal tool for the job.
