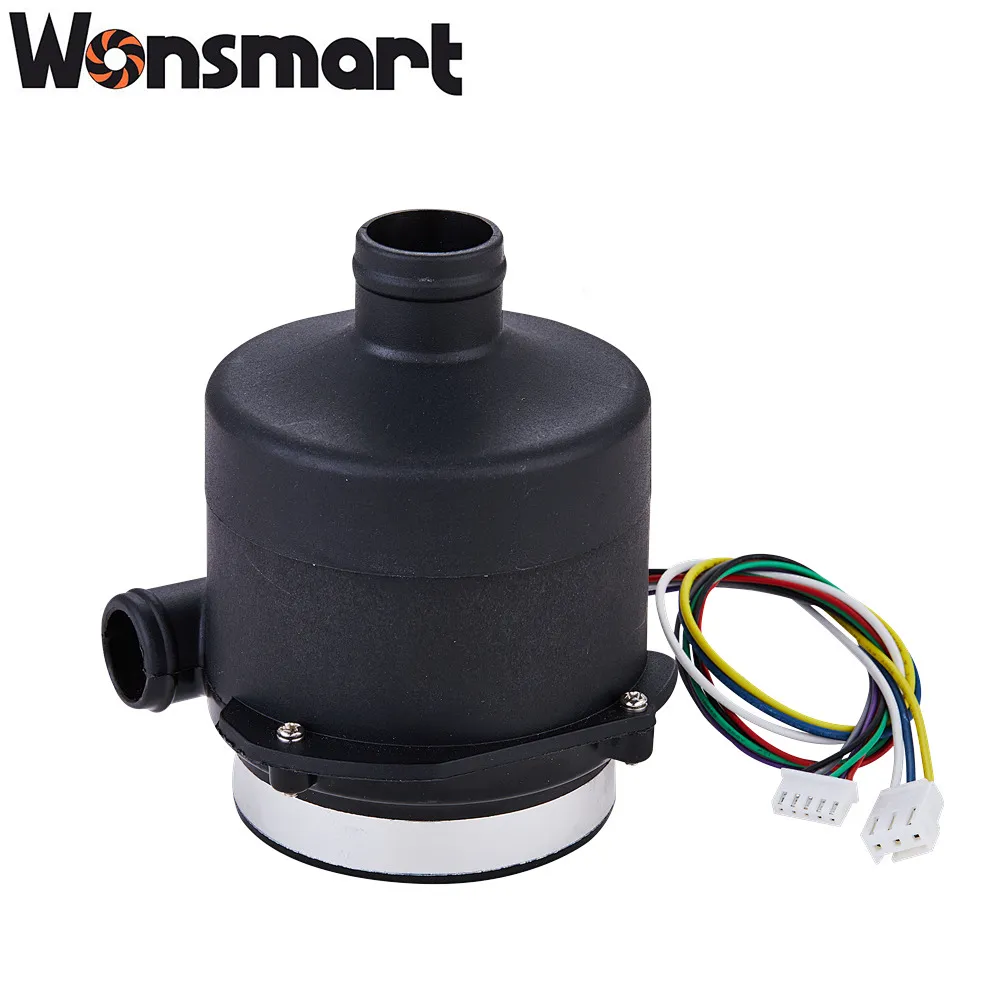

High Pressure DC Blower Fan Blower for BiPAP
WS9290B-24-220-X300
Upgrade your BiPAP experience with our powerful high-pressure DC blower fan blower. Ideal for respiratory therapy equipment.
Quantity
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| High Pressure DC Blower Fan Blower for BiPAP | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 490 grams |

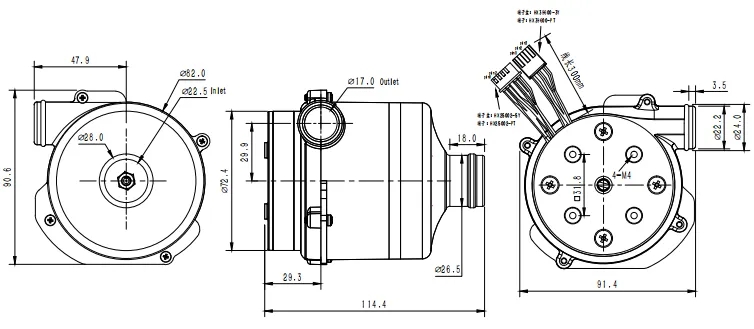

| Applicable Industries: Manufacturing Plant | Unit size: D70mm *H37mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: External |
| Place of Origin:Zhejiang, China | Static pressure: 14kPa |
 |  |
WS9290B-24-220-X300 blower can reach maximum55m³/h airflow at 0 kpa pressure and maximum14kpa static pressure.It has maximum output air power when this blower run at 7kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 7kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:
(1)WS9290B-24-220-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000hours at 20degree C environmental temperature.
(2)Bipap blower motor for 5kw fuel cell needs no maintence;
(3)Bipap blower motor for 5kw fuel cell drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.
(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
Our High Pressure DC Blower Fan Blower for BiPAP delivers superior performance, producing high-output airflow perfect for respiratory therapy equipment. Thanks to its compact size and lightweight design, this blower provides maximum portability and easy installation. Additionally, it saves power and delivers improved performance for longer periods, making it a reliable solution moving forward. This blower is the essential accessory for all types of BiPAP machines, solving the problem of low airflow output and inefficiency. With its vibrations and noise reduction feature, the High Pressure DC Blower Fan Blower for BiPAP ensures a peaceful and undisturbed experience. Enjoy a more efficient and effective BiPAP therapy experience today with our High Pressure DC Blower Fan Blower.
