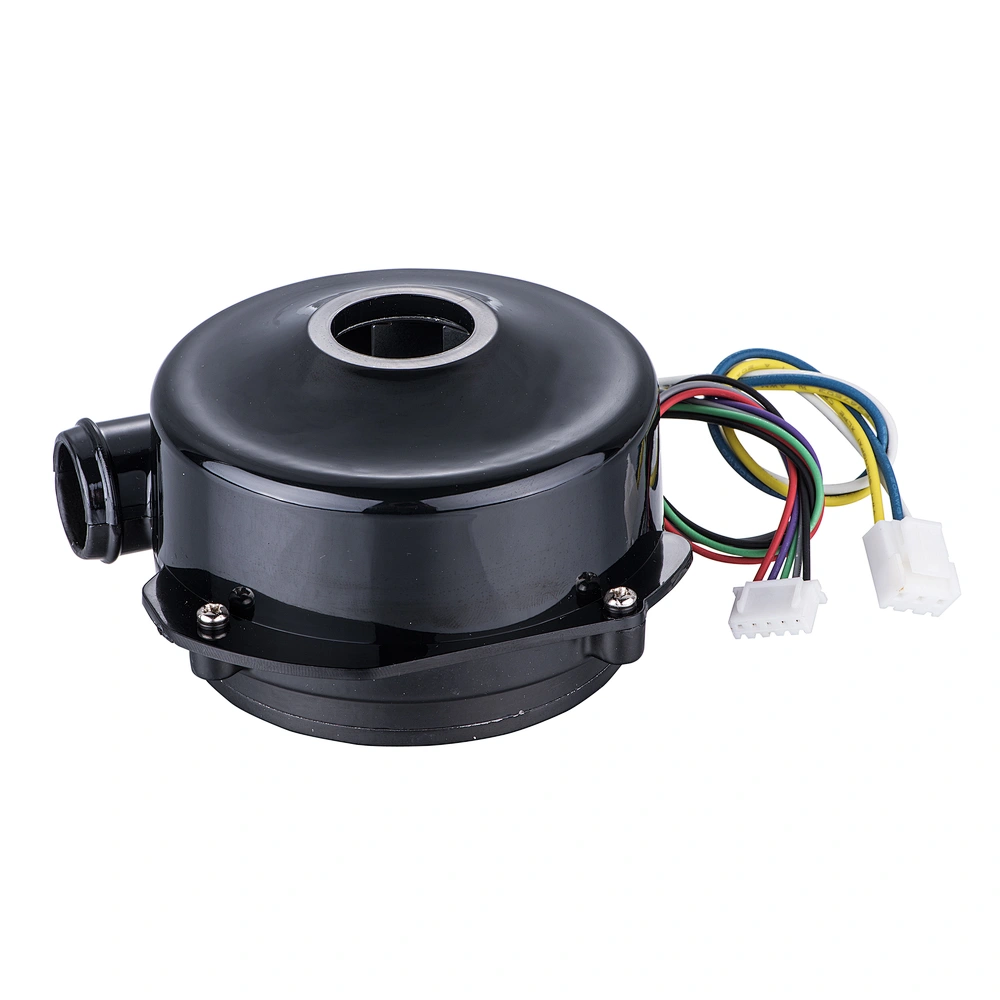

High Capacity Airflow Medical Blower
WS9250-24-240-X200
Improve air circulation and ventilation in medical facilities with our high capacity airflow medical blower.
Quantity
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| High pressure with dc brushless motor | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 420 grams |
| Type: Centrifugal Fan | Housing material:PC |
| Applicable Industries: Manufacturing Plant | Unit size: D92mm *H50mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure:8.5kPa |
 |  |
WS9250-24-240-X200 blower can reach maximum 57m³/h airflow at 0 kpa pressure and maximum 8.5kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 8.5kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS9250-24-240-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This high capacity dc blower needs no maintence
(3)This high capacity dc blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
Our high capacity airflow medical blower is designed to improve air quality in medical facilities by increasing air circulation and ventilation. With its powerful motor and large fan blades, high capacity dc blower has the ability to move large volumes of air in a short amount of time. This product is ideal for hospitals, clinics, and other medical facilities where fresh and clean air is a top priority. It can also be used in research laboratories, clean rooms, and manufacturing facilities. With our blower, you can help reduce the spread of airborne pathogens, allergens, and other harmful particles. Keep your patients and staff safe and healthy with our high capacity airflow medical blower.
